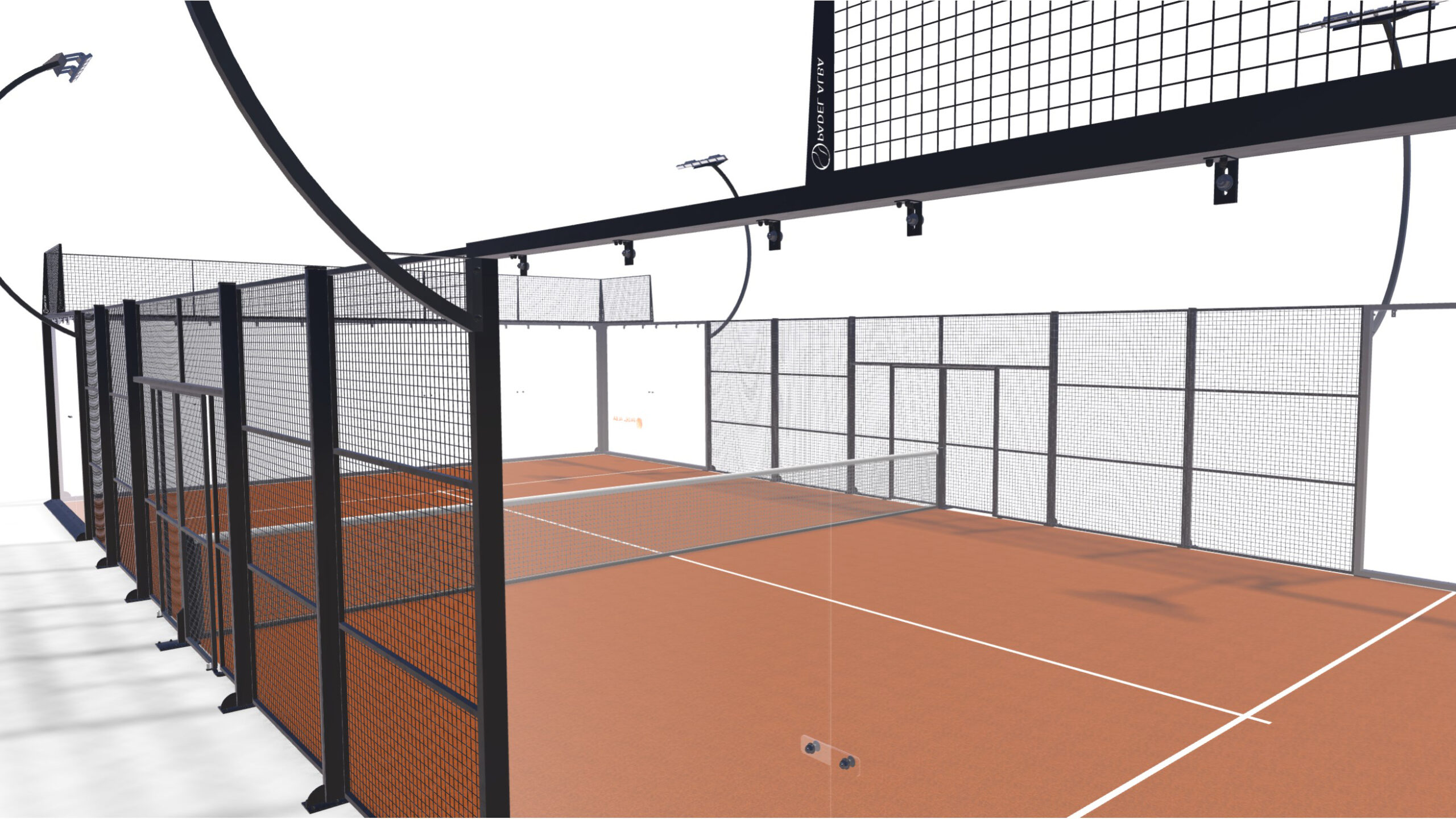

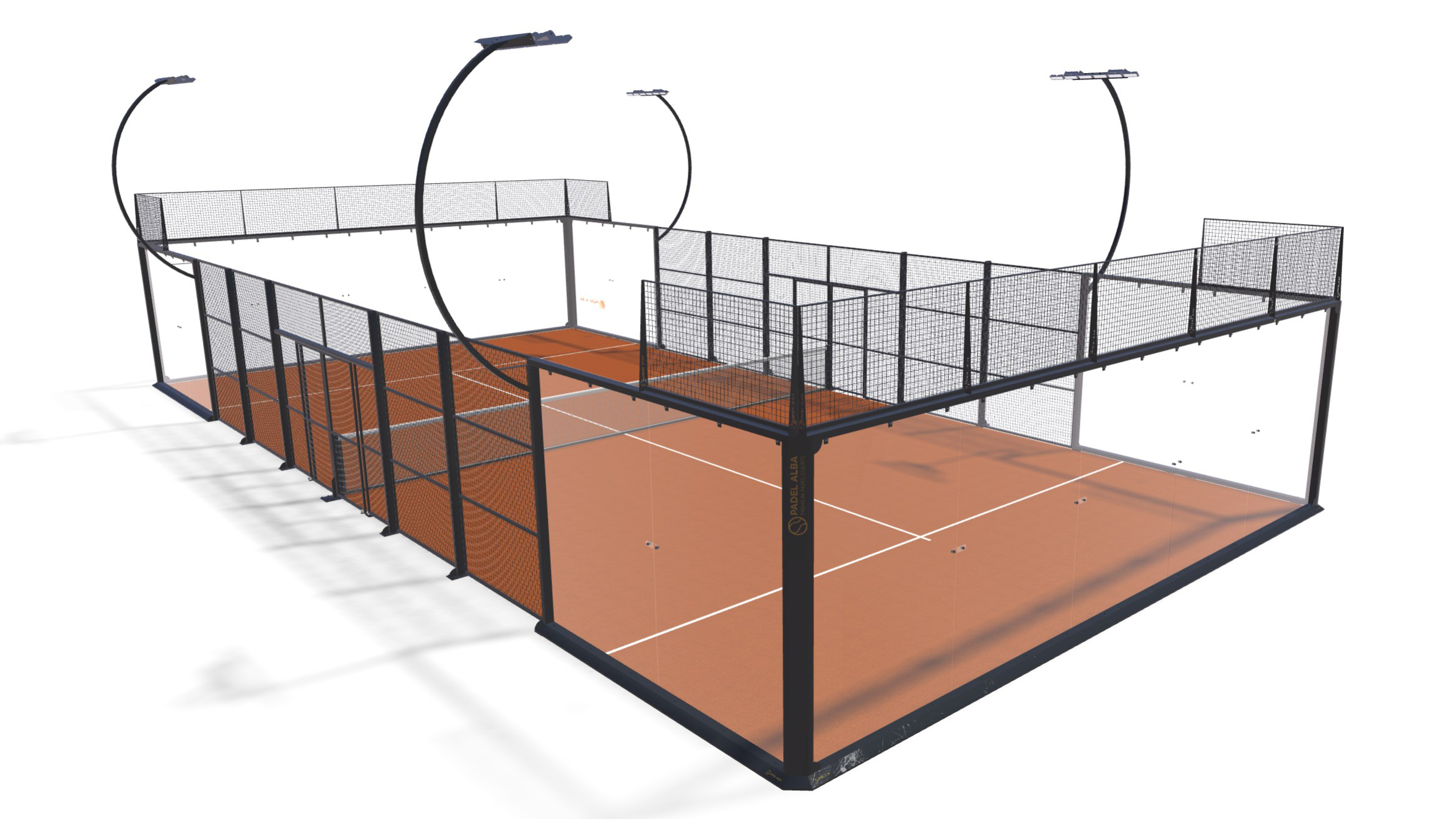

With the Panoramic, Padel Alba moved towards opening up the ends of the court to improve the playing and spectator experience. Posts are removed and the superstructure is reinforced around the seamless glass panels to ensure the same rigidity and durability as the ALBA, but with an eye for the aesthetic.
The Panoramic complies with specifications laid out by the International Padel Federation.

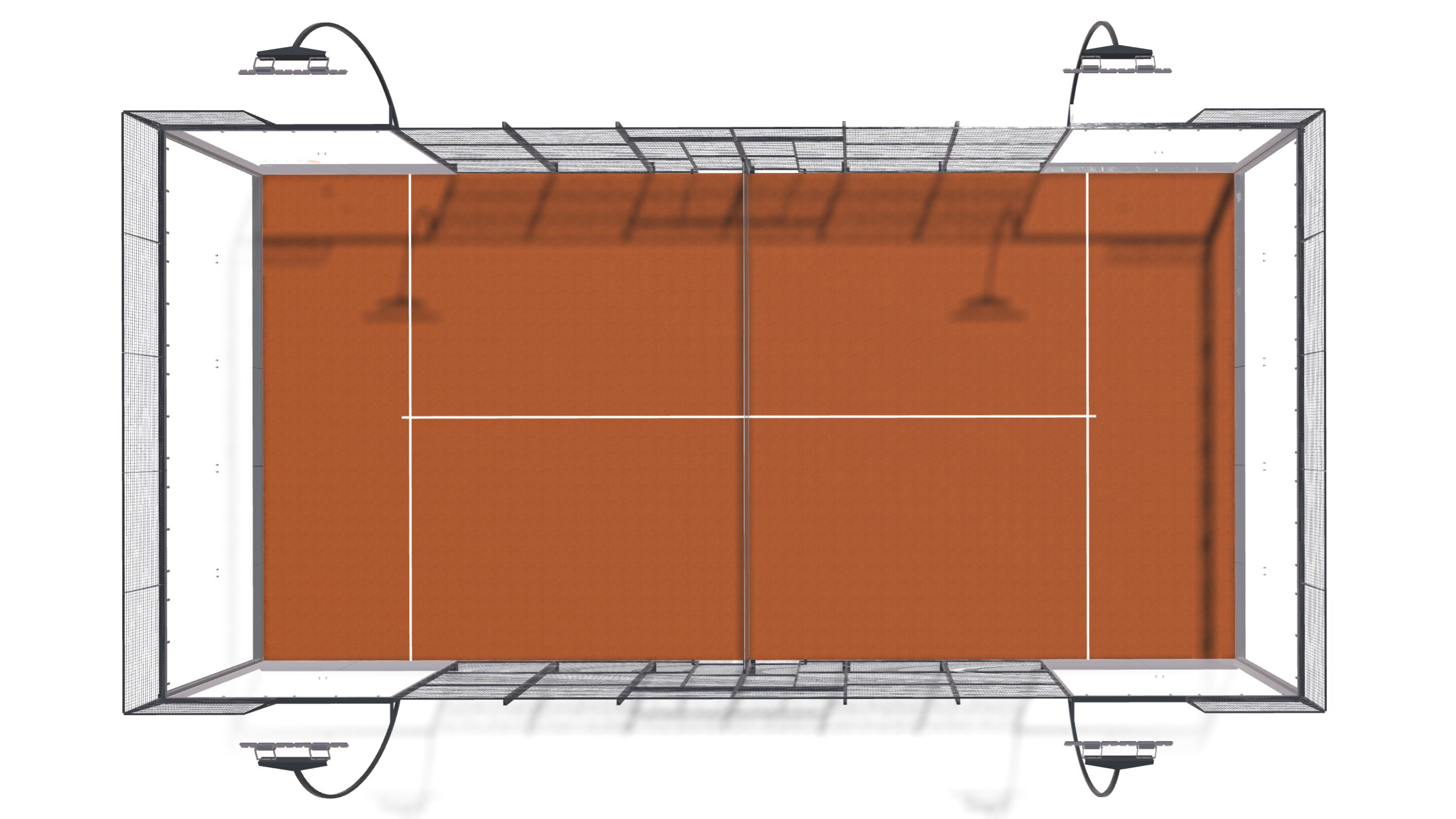

Each 20m x 10m court starts with a galvanized steel super structure, heat treated with epoxy-polyester resin to provide durability and longevity.
Our 50x50x4mm profile mesh is sleek and safe, electro-welded and with all joints reinforced with threaded rods and stainless steel blind nuts to ensure strength and the perfect rigidity needed in a top line padel court.
Mesh modules are 3m x 2m, and are fixed to 100x60x2mm posts with robust anchor plates.
An optional corner finish offers a sleek profile to the interface between the enclosure and the floor.
At the net, the enclosure has a 1m double-entry doorway for easy ingress and egress.
To reinforce the structure, metal brackets are used at the base of the pillars supporting the glazing. In addition, the pillars are sealed with PVC caps for added protection.
Bolt floor fixings complete a solid and durable installation.
Post & Net System
All posts and netting are International Padel Federation (FIP) compliant.
Tempered, 12mm thick and delivered as 3m x 2m panels which are then installed on a 5mm neoprene layer to minimise vibration.
Range of colours :
blue / green / red / black / orange / pink
Our specialist padel LED lighting, LED Projects, have been the official supplier to the World Padel Tour circuit since 2015.
LED Projects’ lighting meets the highest quality standards both in terms of lux levels and uniformity across the playing surface.
All steel components of the enclosure are finished with an electro-static powder paint, which is sprayed on to the steel before it is polymerized, a process that provides high protection against corrosion and UV, as well as the rigours of everyday play.
Additional protection is available for installs in coastal areas or locations with high salt spray exposure.
Colour customization: we can ensure that clients stay on brand, as the structure can be painted in one or more colours of their choice.
